ZIGBOY

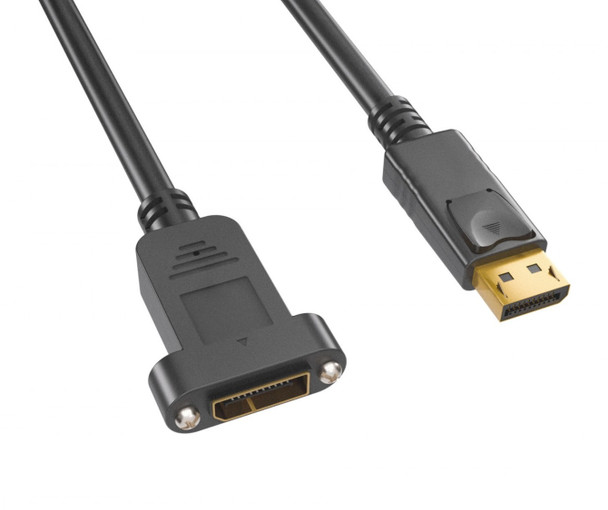

3 Foot DisplayPort Male To Panel Mount Type Female Cable
- SKU:
- 10DP-PMDPMF-03
- MPN:
- 10DP-PMDPMF-03
Description
3 Foot DisplayPort Male To Panel Mount Type Female Cable
- Compliant with DP1.2 specification.
- Connect a DisplayPort (DP, DP++, DisplayPort++) equipped computer to a HD monitor or projector with DisplayPort connector.
- Support HBR bandwidth and resolutions up to 4K@60Hz.
- Gold-plated connectors, bare copper conductors, and foil and braid shielding combine together to provide both superior cable performance and reliable connectivity.
- Transmit high definition audio and video from your computer to a monitor for video streaming or gaming.
- DisplayPort connector with latches provides a secure connection with a release button that must be depressed before unplugging.
- Female connector applied with panel mount type.
- All relevant materials are complied with RoHS directive.
- UL and cUL listed.
Connector A : | DisplayPort Male |
Connector B: | DisplayPort Female Panel Mount |
Conductor : | (28AWG*1PR+D+AL/MY)*5PCS+28AWG*4C+AL+D+AMA 45% BRAID |
Jacket : | OD~7.3mm, VW-1, FT1 |
Cable Color : | Black Color |
